K8s Gateway API

안녕하세요. Kubernetes Advanced Networking Study(=KANS) 3기 모임에서 스터디한 내용을 정리했습니다. 해당 글에서는 k8s중 Gateway API에 대해 자세히 알아보겠습니다.

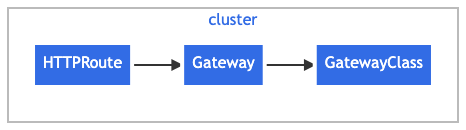

Gateway API

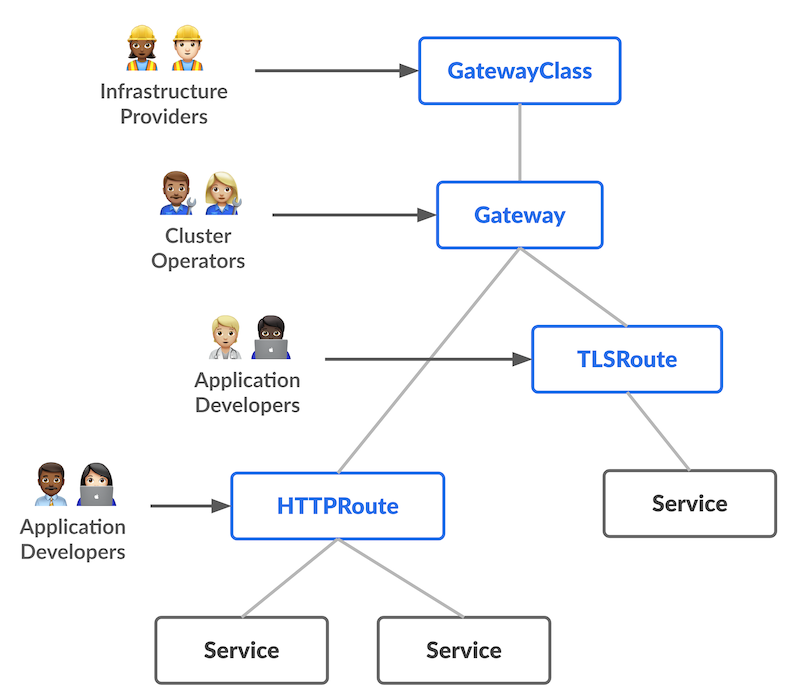

- 기존의 Ingress에 헤더 기반 라우팅, 헤더 변조, 트래픽 미러링(쉽게 트래픽 복제), 역할 기반 등 기능 추가 - Docs

https://kubernetes.io/docs/concepts/services-networking/gateway/

https://gateway-api.sigs.k8s.io/

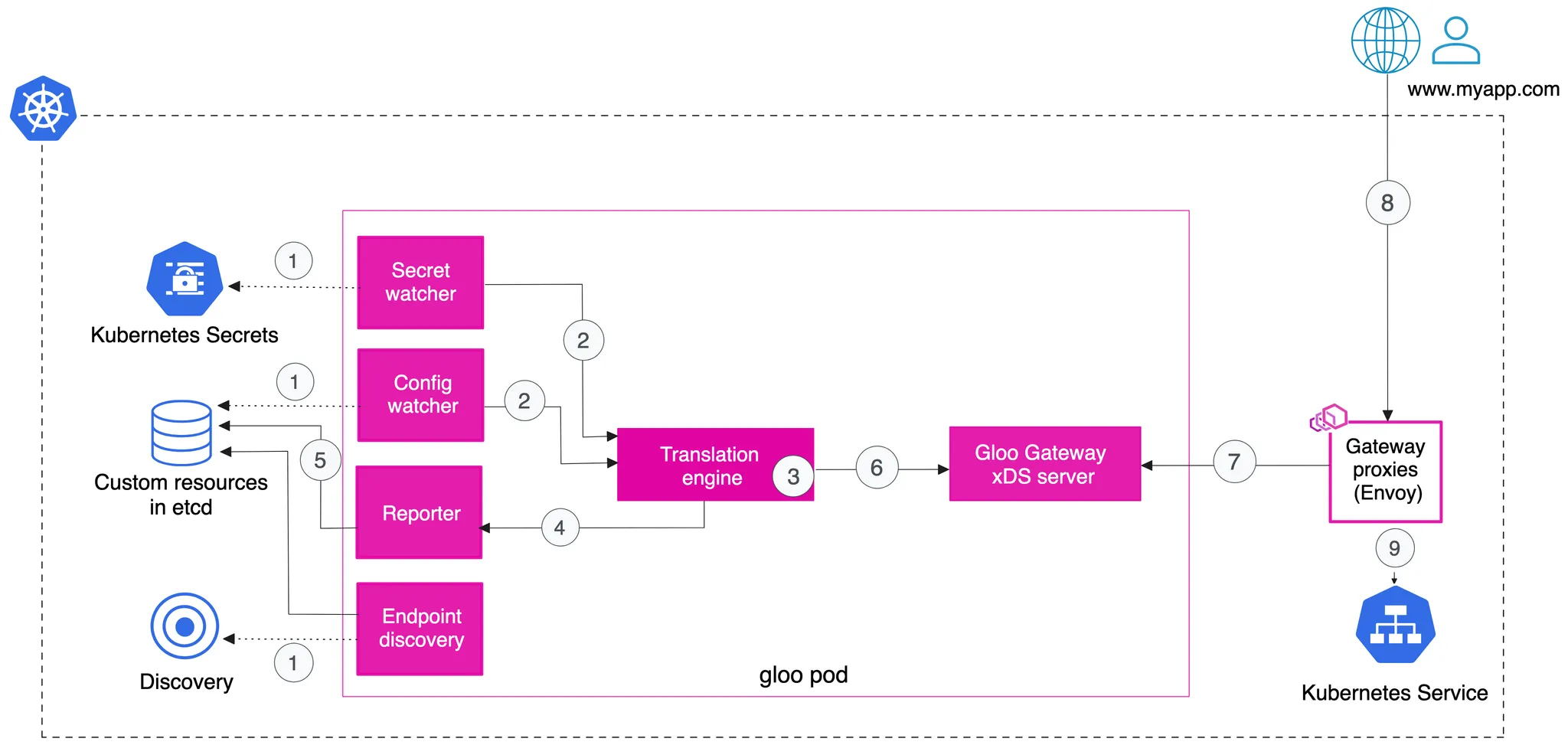

Gloo Gateway

https://docs.solo.io/gateway/latest/about/architecture/



Install KinD Cluster

#
cat <<EOT> kind-1node.yaml
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
  - containerPort: 30002
    hostPort: 30002
EOT

# Install KinD Cluster
kind create cluster --image kindest/node:v1.30.0 --config kind-1node.yaml --name myk8s

# 노드에 기본 툴 설치
docker exec -it myk8s-control-plane sh -c 'apt update && apt install tree psmisc lsof wget bsdmainutils bridge-utils net-tools dnsutils tcpdump ngrep iputils-ping git vim -y'

# 노드/파드 확인
kubectl get nodes -o wide
kubectl get pod -A





Install Gateway API CRDs

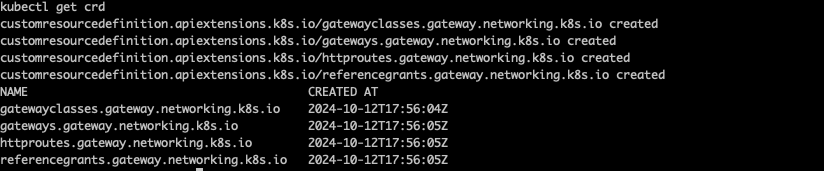

# CRDs 설치 및 확인
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.0.0/standard-install.yaml
kubectl get crd



Install Glooctl Utility

# [신규 터미널] 아래 bash 진입 후 glooctl 툴 사용
docker exec -it myk8s-control-plane bash
----------------------------------------
# Install Glooctl Utility
## glooctl install gateway     # install gloo's function gateway functionality into the 'gloo-system' namespace
## glooctl install ingress     # install very basic Kubernetes Ingress support with Gloo into namespace gloo-system
## glooctl install knative     # install Knative serving with Gloo configured as the default cluster ingress
## curl -sL https://run.solo.io/gloo/install | sh
curl -sL https://run.solo.io/gloo/install | GLOO_VERSION=v1.17.7 sh
export PATH=$HOME/.gloo/bin:$PATH

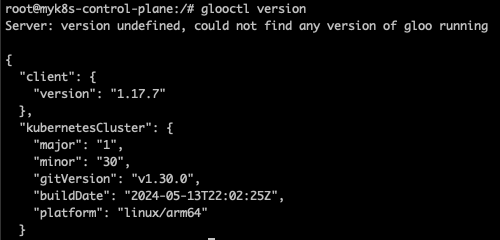

# 버전 확인
glooctl version

----------------------------------------



Install Gloo Gateway : 오픈소스 버전

- rosetta 비활성화

# rosetta 비활성화
orb config set rosetta false

#  orb 설정 확인
orb config show

# orbstack 재시작
orb stop
orb start

# [신규 터미널] 모니터링
watch -d kubectl get pod,svc,endpointslices,ep -n gloo-system

# Install Gloo Gateway
## --set kubeGateway.enabled=true: Kubernetes Gateway 기능을 활성화합니다.
## --set gloo.disableLeaderElection=true: Gloo의 리더 선출 기능을 비활성화합니다. (단일 인스턴스에서 Gloo를 실행 시 유용)
## --set discovery.enabled=false: 서비스 디스커버리 기능을 비활성화합니다.
helm repo add gloo https://storage.googleapis.com/solo-public-helm
helm repo update
helm install -n gloo-system gloo-gateway gloo/gloo \
--create-namespace \
--version 1.17.7 \
--set kubeGateway.enabled=true \
--set gloo.disableLeaderElection=true \
--set discovery.enabled=false

# Confirm that the Gloo control plane has successfully been deployed using this command
kubectl rollout status deployment/gloo -n gloo-system

# 설치 확인
kubectl get crd | grep 'networking.k8s.io'
kubectl get crd | grep -v 'networking.k8s.io'
kubectl get pod,svc,endpointslices -n gloo-system

#
kubectl explain gatewayclasses

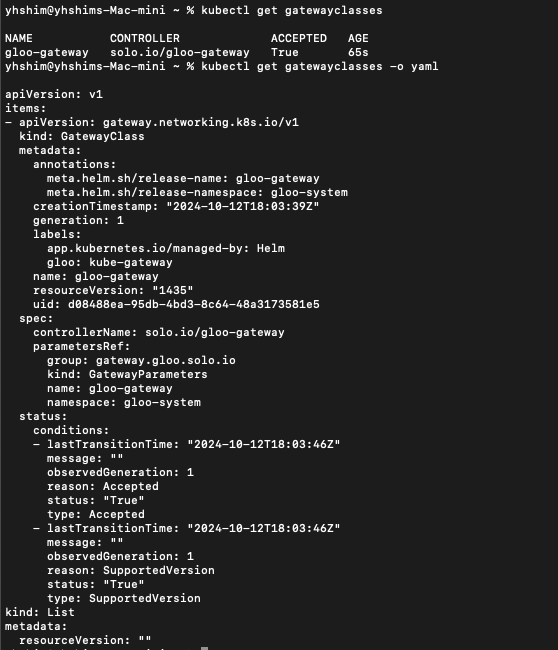

kubectl get gatewayclasses
NAME           CONTROLLER             ACCEPTED   AGE
gloo-gateway   solo.io/gloo-gateway   True       21m

kubectl get gatewayclasses -o yaml
apiVersion: v1
items:
- apiVersion: gateway.networking.k8s.io/v1
  kind: GatewayClass
  metadata:
    labels:
      app: gloo
    name: gloo-gateway
  spec:
    controllerName: solo.io/gloo-gateway
...



Install Httpbin Application

- A simple HTTP Request & Response Service - Link

#
watch -d kubectl get pod,svc,endpointslices,ep -n httpbin

# Install Httpbin Application
kubectl apply -f https://raw.githubusercontent.com/solo-io/solo-blog/main/gateway-api-tutorial/01-httpbin-svc.yaml

# 설치 확인
kubectl get deploy,pod,svc,endpointslices,sa -n httpbin
kubectl rollout status deploy/httpbin -n httpbin

# (옵션) NodePort 설정
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  labels:
    app: httpbin
    service: httpbin
  name: httpbin
  namespace: httpbin
spec:
  type: NodePort
  ports:
  - name: http
    port: 8000
    targetPort: 80
    nodePort: 30000
  selector:
    app: httpbin
EOF

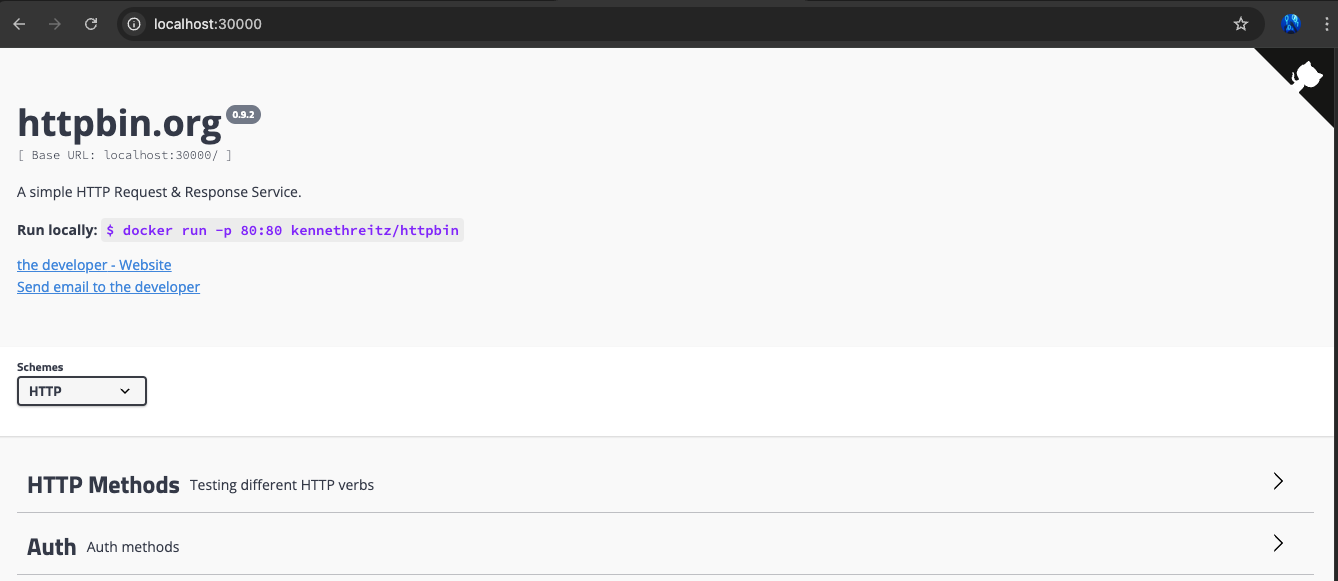

# (옵션) 로컬 접속 확인
echo "httpbin web - http://localhost:30000"     # macOS 사용자
echo "httpbin web - http://192.168.50.10:30000" # Windows 사용자





참고 자료

https://gateway-api.sigs.k8s.io/

Introduction - Kubernetes Gateway API



Gloo Blog , Docs

Get started | Solo.io documentation
