안녕하세요. AWS EKS Workshop Study (=AEWS) 3기 모임에서 스터디한 내용을 정리했습니다. 해당 글에서는 Amzaon EKS Observability에 대해 자세히 알아보겠습니다.

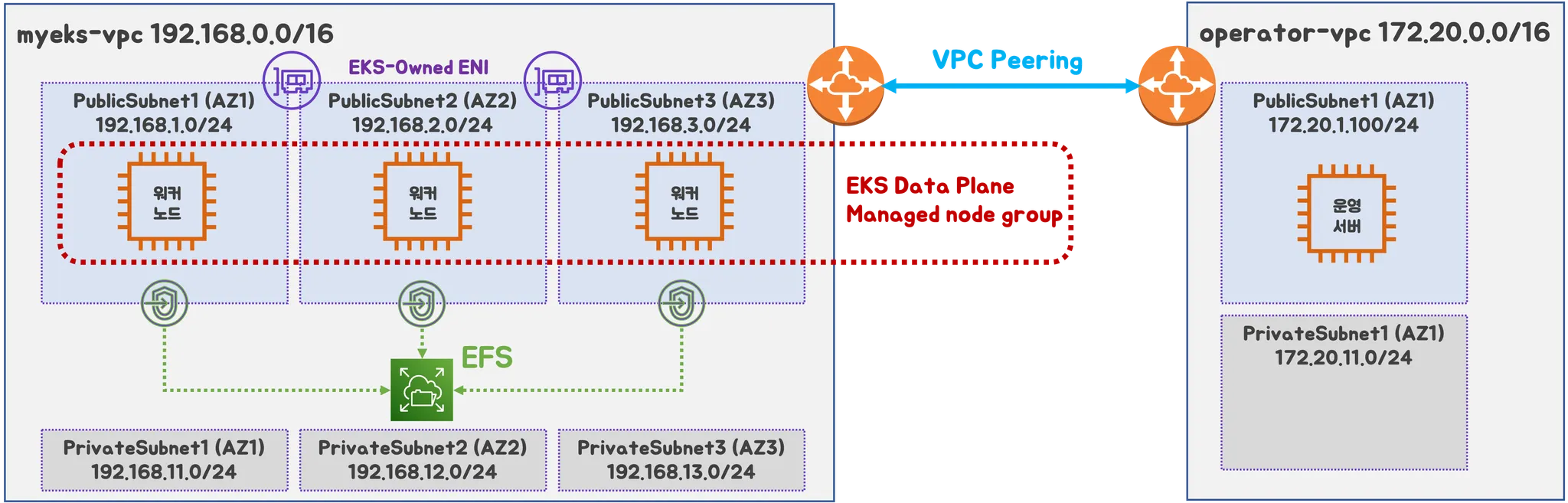

실습 환경
# YAML 파일 다운로드
curl -O https://s3.ap-northeast-2.amazonaws.com/cloudformation.cloudneta.net/K8S/myeks-4week.yaml
# 변수 지정
CLUSTER_NAME=myeks
SSHKEYNAME=<SSH 키 페이 이름>
MYACCESSKEY=<IAM Uesr 액세스 키>
MYSECRETKEY=<IAM Uesr 시크릿 키>
WorkerNodeInstanceType=<워커 노드 인스턴스 타입> # 워커노드 인스턴스 타입 변경 가능
# CloudFormation 스택 배포
aws cloudformation deploy --template-file myeks-4week.yaml --stack-name $CLUSTER_NAME --parameter-overrides KeyName=$SSHKEYNAME SgIngressSshCidr=$(curl -s ipinfo.io/ip)/32 MyIamUserAccessKeyID=$MYACCESSKEY MyIamUserSecretAccessKey=$MYSECRETKEY ClusterBaseName=$CLUSTER_NAME WorkerNodeInstanceType=$WorkerNodeInstanceType --region ap-northeast-2
# CloudFormation 스택 배포 완료 후 작업용 EC2 IP 출력
aws cloudformation describe-stacks --stack-name myeks --query 'Stacks[*].Outputs[0].OutputValue' --output text
# 운영서버 EC2 SSH 접속
ssh -i kp-hayley.pem ec2-user@$(aws cloudformation describe-stacks --stack-name myeks --query 'Stacks[*].Outputs[0].OutputValue' --output text)
whoami
pwd
# cloud-init 실행 과정 로그 확인
tail -f /var/log/cloud-init-output.log
# eks 설정 파일 확인
cat myeks.yaml
# cloud-init 정상 완료 후 eksctl 실행 과정 로그 확인
tail -f /root/create-eks.log
#
exitLocal PC 내 EKS 설치 확인 및 kubeconfig 업데이트
# 변수 지정
CLUSTER_NAME=myeks
SSHKEYNAME=kp-hayley
#

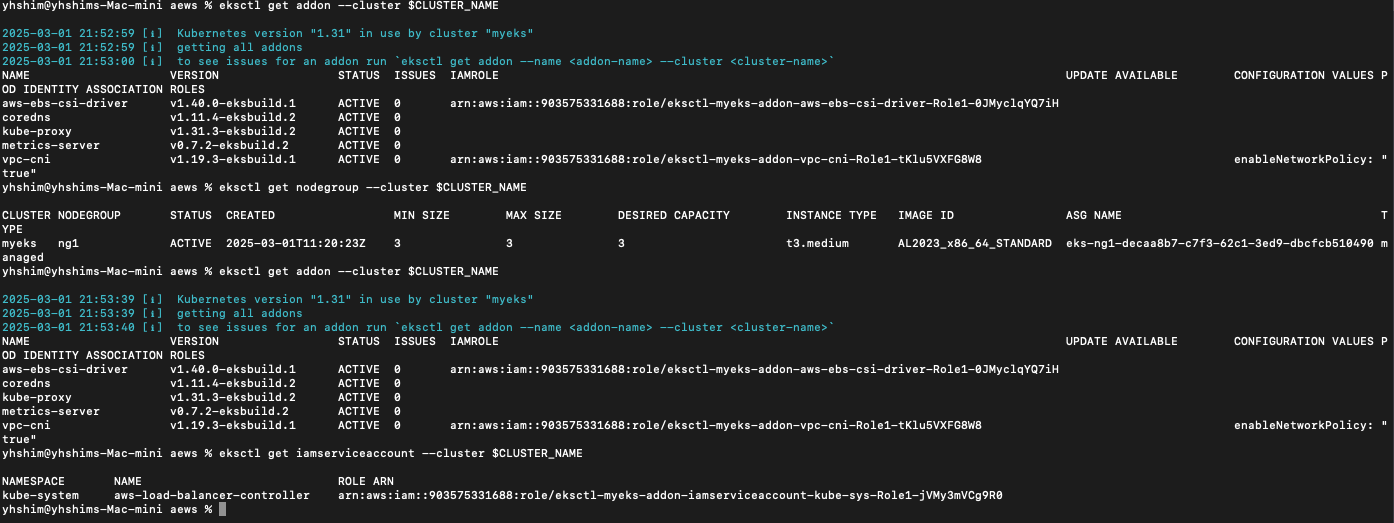

eksctl get cluster
eksctl get nodegroup --cluster $CLUSTER_NAME
eksctl get addon --cluster $CLUSTER_NAME
eksctl get iamserviceaccount --cluster $CLUSTER_NAME
# kubeconfig 생성
aws sts get-caller-identity --query Arn
aws eks update-kubeconfig --name myeks --user-alias <위 출력된 자격증명 사용자>
aws eks update-kubeconfig --name myeks --user-alias admin
#

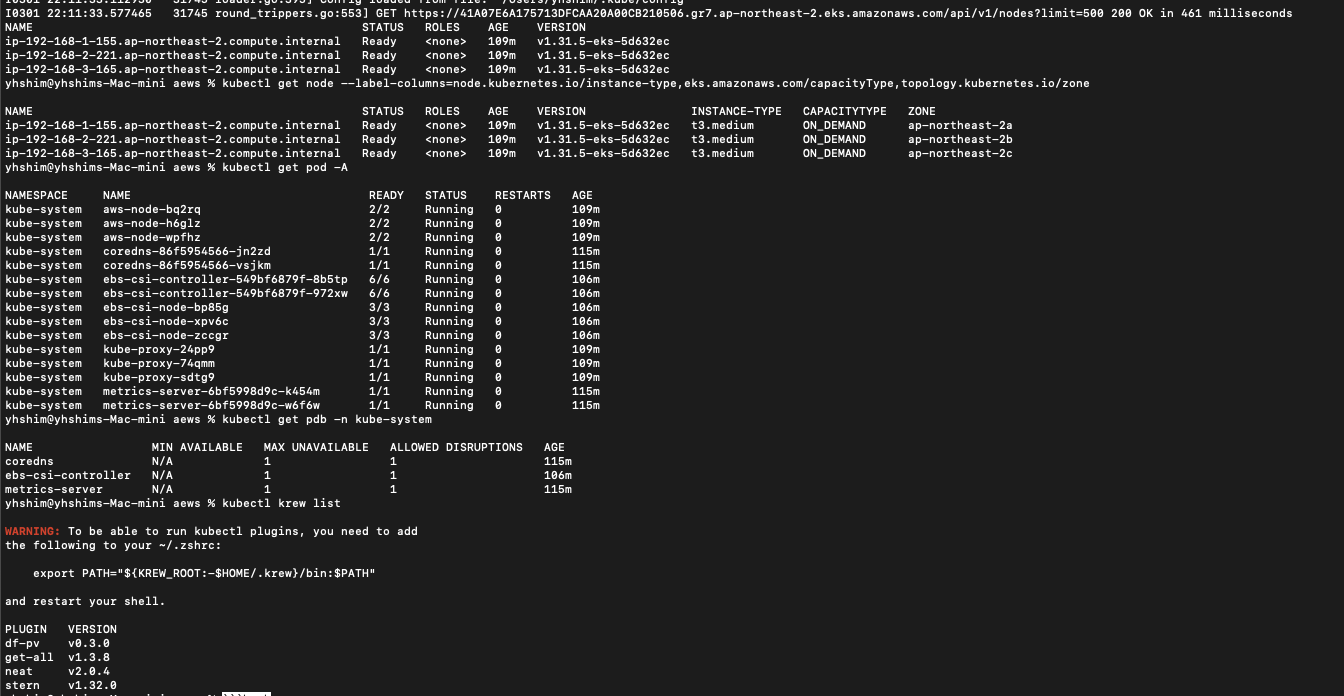

kubectl cluster-info
kubectl ns default
kubectl get node -v6
kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone
kubectl get pod -A
kubectl get pdb -n kube-system
# krew 플러그인 확인
kubectl krew list
kubectl get-all
노드 IP 정보 확인 및 SSH 접속

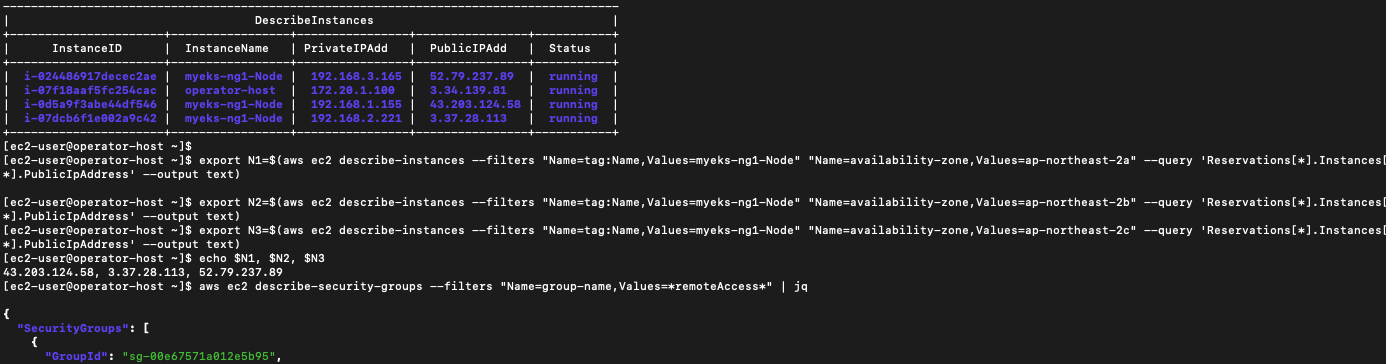

# 인스턴스 정보 확인
aws ec2 describe-instances --query "Reservations[*].Instances[*].{InstanceID:InstanceId, PublicIPAdd:PublicIpAddress, PrivateIPAdd:PrivateIpAddress, InstanceName:Tags[?Key=='Name']|[0].Value, Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
# EC2 공인 IP 변수 지정
export N1=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=myeks-ng1-Node" "Name=availability-zone,Values=ap-northeast-2a" --query 'Reservations[*].Instances[*].PublicIpAddress' --output text)
export N2=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=myeks-ng1-Node" "Name=availability-zone,Values=ap-northeast-2b" --query 'Reservations[*].Instances[*].PublicIpAddress' --output text)
export N3=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=myeks-ng1-Node" "Name=availability-zone,Values=ap-northeast-2c" --query 'Reservations[*].Instances[*].PublicIpAddress' --output text)
echo $N1, $N2, $N3
# *remoteAccess* 포함된 보안그룹 ID
aws ec2 describe-security-groups --filters "Name=group-name,Values=*remoteAccess*" | jq
export MNSGID=$(aws ec2 describe-security-groups --filters "Name=group-name,Values=*remoteAccess*" --query 'SecurityGroups[*].GroupId' --output text)
# 해당 보안그룹 inbound 에 자신의 집 공인 IP 룰 추가
aws ec2 authorize-security-group-ingress --group-id $MNSGID --protocol '-1' --cidr $(curl -s ipinfo.io/ip)/32
# 해당 보안그룹 inbound 에 운영서버 내부 IP 룰 추가
aws ec2 authorize-security-group-ingress --group-id $MNSGID --protocol '-1' --cidr 172.20.1.100/32
# 워커 노드 SSH 접속
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh -o StrictHostKeyChecking=no ec2-user@$i hostname; echo; done
ssh ec2-user@$N1
exit
ssh ec2-user@$N2
exit
ssh ec2-user@$N2
exit
노드 기본 정보 확인
# 노드 기본 정보 확인
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i hostnamectl; echo; done
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo ip -c addr; echo; done
#
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i lsblk; echo; done
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i df -hT /; echo; done

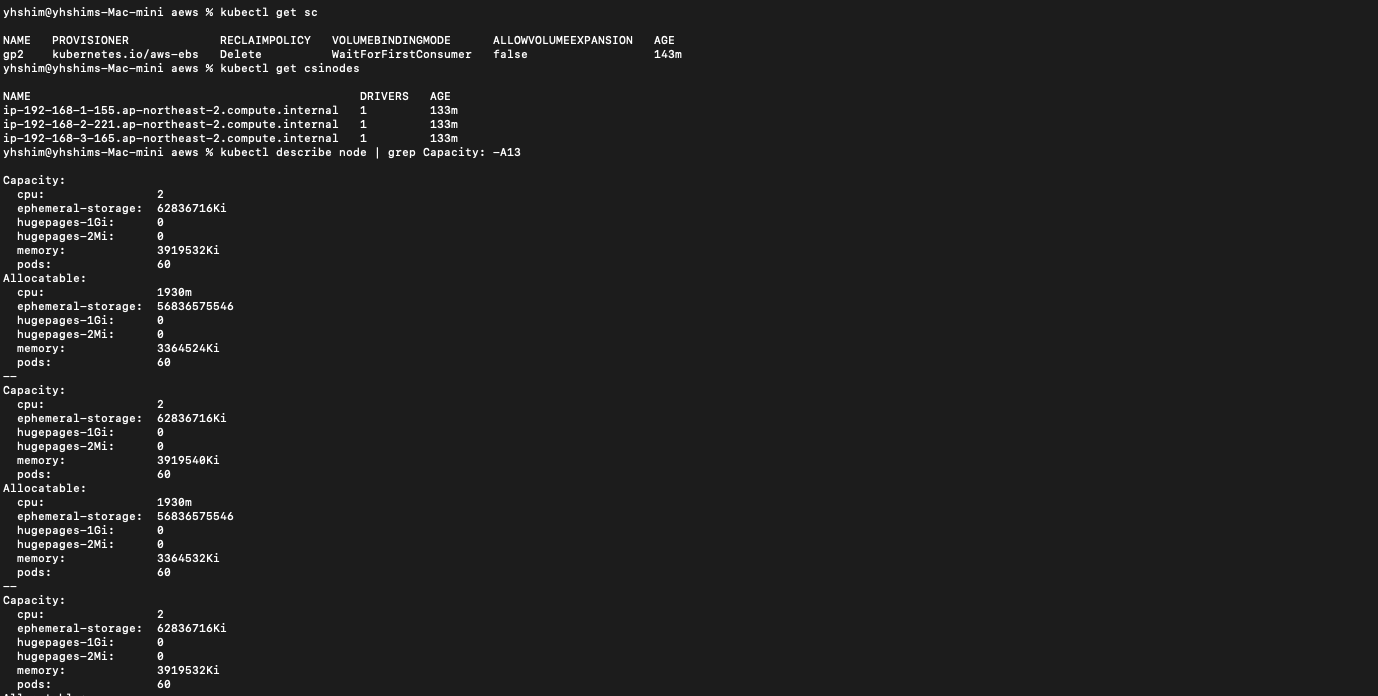

# 스토리지클래스 및 CSI 노드 확인
kubectl get sc
kubectl get csinodes
# max-pods 정보 확인
kubectl describe node | grep Capacity: -A13
kubectl get nodes -o custom-columns="NAME:.metadata.name,MAXPODS:.status.capacity.pods"
# 노드에서 확인
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i cat /etc/eks/bootstrap.sh; echo; done
ssh ec2-user@$N1 sudo cat /etc/kubernetes/kubelet/config.json | jq
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo cat /etc/kubernetes/kubelet/config.json | grep maxPods; echo; done
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ssh ec2-user@$i sudo cat /etc/kubernetes/kubelet/config.json.d/00-nodeadm.conf | grep maxPods; echo; done
운영서버 EC2 에 SSH 접속
SSH 접속 후 기본 확인

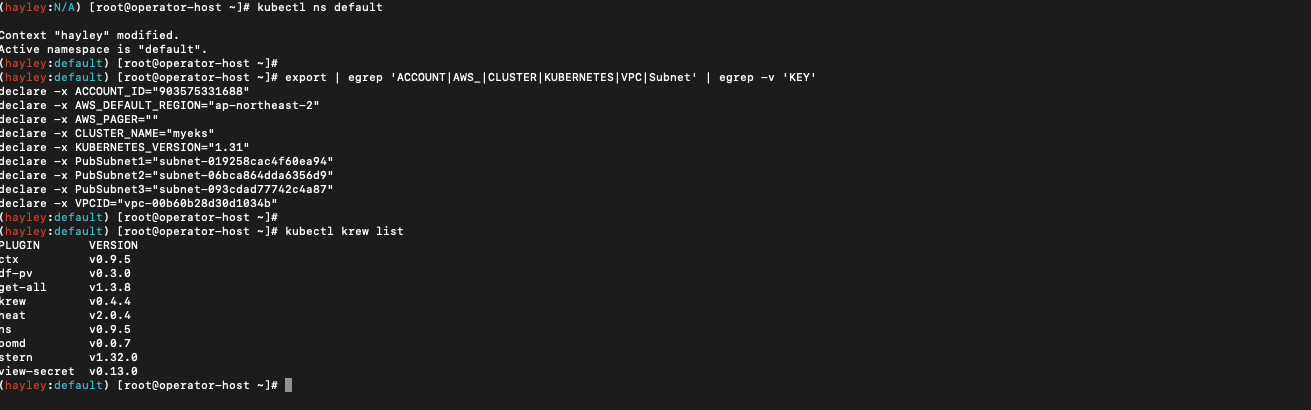

# default 네임스페이스 적용
kubectl ns default
# 환경변수 정보 확인
export | egrep 'ACCOUNT|AWS_|CLUSTER|KUBERNETES|VPC|Subnet'
export | egrep 'ACCOUNT|AWS_|CLUSTER|KUBERNETES|VPC|Subnet' | egrep -v 'KEY'
# krew 플러그인 확인
kubectl krew list
노드 정보 확인 및 SSH 접속
# 인스턴스 정보 확인
aws ec2 describe-instances --query "Reservations[*].Instances[*].{InstanceID:InstanceId, PublicIPAdd:PublicIpAddress, PrivateIPAdd:PrivateIpAddress, InstanceName:Tags[?Key=='Name']|[0].Value, Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
# 노드 IP 확인 및 PrivateIP 변수 지정
aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
N1=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2a -o jsonpath={.items[0].status.addresses[0].address})
N2=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2b -o jsonpath={.items[0].status.addresses[0].address})
N3=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2c -o jsonpath={.items[0].status.addresses[0].address})
echo "export N1=$N1" >> /etc/profile
echo "export N2=$N2" >> /etc/profile
echo "export N3=$N3" >> /etc/profile
echo $N1, $N2, $N3
# 노드 IP 로 ping 테스트
for i in $N1 $N2 $N3; do echo ">> node $i <<"; ping -c 1 $i ; echo; done
kube-ops-view(Ingress), AWS LoadBalancer Controller, ExternalDNS, gp3 storageclass 설치

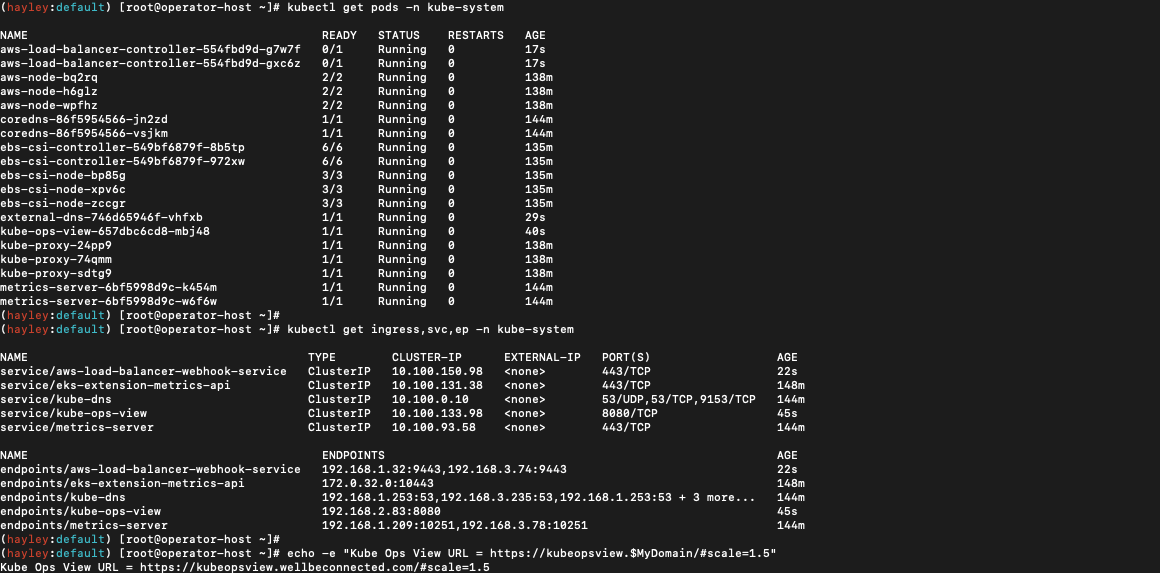

# 설치된 파드 정보 확인
kubectl get pods -n kube-system
# service, ep, ingress 확인
kubectl get ingress,svc,ep -n kube-system
# Kube Ops View 접속 정보 확인
echo -e "Kube Ops View URL = https://kubeopsview.$MyDomain/#scale=1.5"
open "https://kubeopsview.$MyDomain/#scale=1.5" # macOS
모니터링(Monitoring)과 관측 가능성(Observability)의 정의&차이점
모니터링
- 모니터링의 정의와 특징 : 사전에 정의된 기준을 기반으로 시스템의 상태를 감시에 중점
- 목적: 시스템의 건강 상태를 확인하고, 문제가 발생했는지 감지. 예: 서버 다운 감지
- 주요 활동: CPU 사용량, 메모리 사용량, 응답 시간, 오류율 등 특정 지표를 지속적으로 측정
관측가능성
- 관측 가능성의 정의와 특징 : 수집된 다양한 데이터를 활용하여 예측되지 않은 문제까지 분석
- 목적: 시스템의 건강 상태를 확인하고, 문제가 발생했는지 감지. 예: 서버 다운 감지
- 핵심 데이터: 로그(이벤트 기록), 메트릭(수치 데이터), 트레이스(요청 흐름 추적), 그리고 일부 경우 이벤트가 포함됨
EKS Console
쿠버네티스 API를 통해서 리소스 및 정보를 확인 할 수 있습니다.[참고 : 링크]

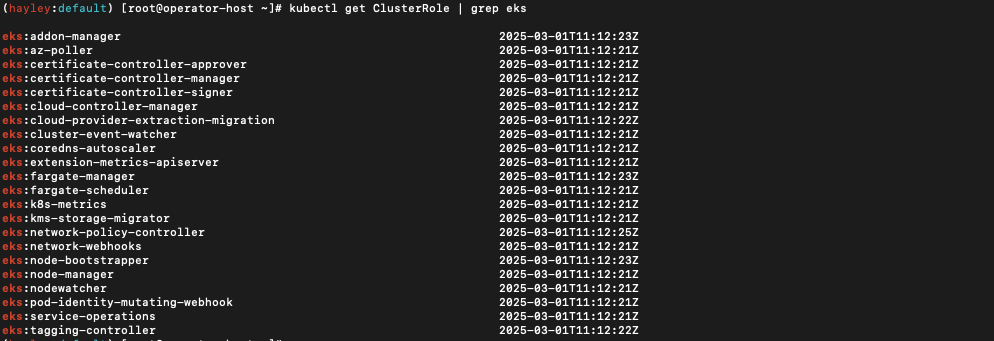

$ kubectl get ClusterRole | grep eks
Logging in EKS
- Control Plane logging — 로그 그룹- 로그 이름( /aws/eks/<cluster-name>/cluster ) — Docs

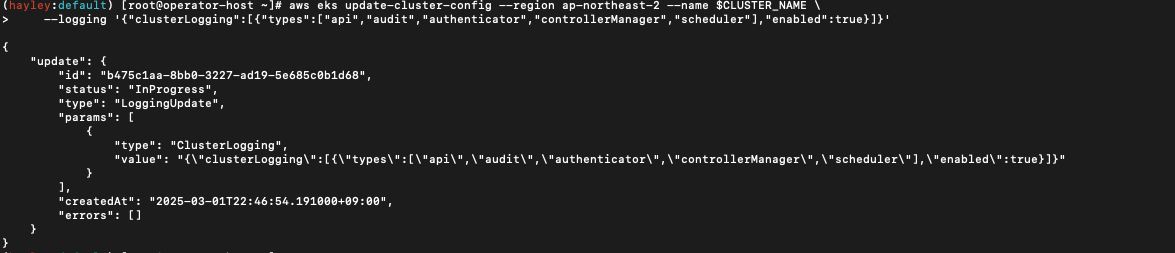

# 모든 로깅 활성화
$ aws eks update-cluster-config --region $AWS_DEFAULT_REGION --name $CLUSTER_NAME \
--logging '{"clusterLogging":[{"types":["api","audit","authenticator","controllerManager","scheduler"],"enabled":true}]}'
# 로그 그룹 확인
$ aws logs describe-log-groups | jq
# 로그 tail 확인 : aws logs tail help
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster | more
# 신규 로그를 바로 출력
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster --follow
# 필터 패턴
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster --filter-pattern <필터 패턴>
# 로그 스트림이름
# aws logs tail /aws/eks/$CLUSTER_NAME/cluster --log-stream-name-prefix <로그 스트림 prefix> --follow
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster --log-stream-name-prefix kube-controller-manager --follow
$ kubectl scale deployment -n kube-system coredns --replicas=1
$ kubectl scale deployment -n kube-system coredns --replicas=2
# 시간 지정: 1초(s) 1분(m) 1시간(h) 하루(d) 한주(w)
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster --since 1h30m
# 짧게 출력
$ aws logs tail /aws/eks/$CLUSTER_NAME/cluster --since 1h30m --format short
- CloudWatch Log Insights — 쿼리로 필터링해서 볼 수 있습니다. [링크]
# EC2 Instance가 NodeNotReady 상태인 로그 검색
fields @timestamp, @message
| filter @message like /NodeNotReady/
| sort @timestamp desc
# kube-apiserver-audit 로그에서 userAgent 정렬해서 아래 4개 필드 정보 검색
# 어떤 userAgent가 API 로그를 사용했는지 감사 로그
fields userAgent, requestURI, @timestamp, @message
| filter @logStream ~= "kube-apiserver-audit"
| stats count(userAgent) as count by userAgent
| sort count desc
#
fields @timestamp, @message
| filter @logStream ~= "kube-scheduler"
| sort @timestamp desc
#
fields @timestamp, @message
| filter @logStream ~= "authenticator"
| sort @timestamp desc
#
fields @timestamp, @message
| filter @logStream ~= "kube-controller-manager"
| sort @timestamp desc- CloudWatch Log Insight Query with AWS CLI

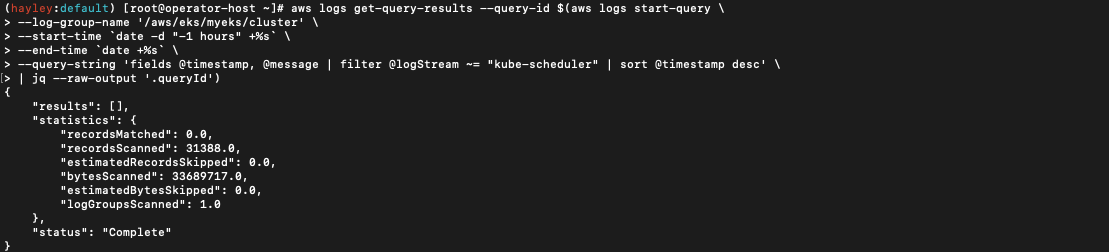

# CloudWatch Log Insight Query
$ aws logs get-query-results --query-id $(aws logs start-query \
--log-group-name '/aws/eks/eks-hayley/cluster' \
--start-time `date -d "-1 hours" +%s` \
--end-time `date +%s` \
--query-string 'fields @timestamp, @message | filter @logStream ~= "kube-scheduler" | sort @timestamp desc' \
| jq --raw-output '.queryId')
- 로깅 끄기
# EKS Control Plane 로깅(CloudWatch Logs) 비활성화
$ eksctl utils update-cluster-logging --cluster $CLUSTER_NAME --region $AWS_DEFAULT_REGION --disable-types all --approve
# 로그 그룹 삭제
$ aws logs delete-log-group --log-group-name /aws/eks/$CLUSTER_NAME/cluster
Logging inactive
해당 클러스터 Log group 삭제 확인
- Control Plane metrics with Prometheus & CW Logs Insights 쿼리
# 메트릭 패턴 정보 : metric_name{"tag"="value"[,...]} value
$ kubectl get --raw /metrics | more
# HELP aggregator_openapi_v2_regeneration_count [ALPHA] Counter of OpenAPI v2 sp
ec regeneration count broken down by causing APIService name and reason.
# TYPE aggregator_openapi_v2_regeneration_count counter
aggregator_openapi_v2_regeneration_count{apiservice="*",reason="startup"} 0
aggregator_openapi_v2_regeneration_count{apiservice="k8s_internal_local_delegati
on_chain_0000000002",reason="update"} 0
# HELP aggregator_openapi_v2_regeneration_duration [ALPHA] Gauge of OpenAPI v2 s
pec regeneration duration in seconds.
# TYPE aggregator_openapi_v2_regeneration_duration gauge
aggregator_openapi_v2_regeneration_duration{reason="startup"} 0.02443115
aggregator_openapi_v2_regeneration_duration{reason="update"} 0.024106275
# HELP aggregator_unavailable_apiservice [ALPHA] Gauge of APIServices which are
marked as unavailable broken down by APIService name.
# TYPE aggregator_unavailable_apiservice gauge
aggregator_unavailable_apiservice{name="v1."} 0
aggregator_unavailable_apiservice{name="v1.admissionregistration.k8s.io"} 0
aggregator_unavailable_apiservice{name="v1.apiextensions.k8s.io"} 0
aggregator_unavailable_apiservice{name="v1.apps"} 0
...- Managing etcd database size on Amazon EKS clusters
# How to monitor etcd database size? >> 아래 10.0.X.Y IP는 어디일까요? >> 아래 주소로 프로메테우스 메트릭 수집 endpoint 주소로 사용 가능한지???
$ kubectl get --raw /metrics | grep "etcd_db_total_size_in_bytes"
# HELP etcd_db_total_size_in_bytes [ALPHA] Total size of the etcd database file physically allocated in bytes.
# TYPE etcd_db_total_size_in_bytes gauge
etcd_db_total_size_in_bytes{endpoint="http://10.0.160.16:2379"} 4.427776e+06
etcd_db_total_size_in_bytes{endpoint="http://10.0.32.16:2379"} 4.493312e+06
etcd_db_total_size_in_bytes{endpoint="http://10.0.96.16:2379"} 4.616192e+06
$ kubectl get --raw=/metrics | grep apiserver_storage_objects |awk '$2>100' |sort -g -k 2
# CW Logs Insights 쿼리
fields @timestamp, @message, @logStream
| filter @logStream like /kube-apiserver-audit/
| filter @message like /mvcc: database space exceeded/
| limit 10
# How do I identify what is consuming etcd database space?
$ kubectl get --raw=/metrics | grep apiserver_storage_objects |awk '$2>100' |sort -g -k 2
$ kubectl get --raw=/metrics | grep apiserver_storage_objects |awk '$2>50' |sort -g -k 2
# HELP apiserver_storage_objects [STABLE] Number of stored objects at the time of last check split by kind.
# TYPE apiserver_storage_objects gauge
apiserver_storage_objects{resource="clusterrolebindings.rbac.authorization.k8s.io"} 75
apiserver_storage_objects{resource="clusterroles.rbac.authorization.k8s.io"} 89
# CW Logs Insights 쿼리 : Request volume - Requests by User Agent:
fields userAgent, requestURI, @timestamp, @message
| filter @logStream like /kube-apiserver-audit/
| stats count(*) as count by userAgent
| sort count desc
# CW Logs Insights 쿼리 : Request volume - Requests by Universal Resource Identifier (URI)/Verb:
filter @logStream like /kube-apiserver-audit/
| stats count(*) as count by requestURI, verb, user.username
| sort count desc
# Object revision updates
fields requestURI
| filter @logStream like /kube-apiserver-audit/
| filter requestURI like /pods/
| filter verb like /patch/
| filter count > 8
| stats count(*) as count by requestURI, responseStatus.code
| filter responseStatus.code not like /500/
| sort count desc
#
fields @timestamp, userAgent, responseStatus.code, requestURI
| filter @logStream like /kube-apiserver-audit/
| filter requestURI like /pods/
| filter verb like /patch/
| filter requestURI like /name_of_the_pod_that_is_updating_fast/
| sort @timestamp
컨테이너 로깅
# NGINX 웹서버 배포
$ helm repo add bitnami https://charts.bitnami.com/bitnami
"bitnami" has been added to your repositories
# 사용 리전의 인증서 ARN 확인
$ CERT_ARN=$(aws acm list-certificates --query 'CertificateSummaryList[].CertificateArn[]' --output text)
$ echo $CERT_ARN
arn:aws:acm:ap-northeast-2:90XXXXXX:certificate/3f025fab-6859-4cad-9d60-0c5887053d70
# 도메인 확인
$ echo $MyDomain
wellbeconnected.com
# 파라미터 파일 생성
$ cat <<EOT > nginx-values.yaml
service:
type: NodePort
ingress:
enabled: true
ingressClassName: alb
hostname: nginx.$MyDomain
path: /*
annotations:
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/load-balancer-name: $CLUSTER_NAME-ingress-alb
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/ssl-redirect: '443'
EOT
$ cat nginx-values.yaml | yh
# 배포
$ helm install nginx bitnami/nginx --version 1.19.0 -f nginx-values.yaml
# 확인
$ kubectl get ingress,deploy,svc,ep nginx
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/nginx alb nginx.wellbeconnected.com eks-hayley-ingress-alb-994512920.ap-northeast-2.elb.amazonaws.com 80 10s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/nginx 0/1 1 0 10s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx NodePort 10.100.59.220 <none> 80:30990/TCP 10s
NAME ENDPOINTS AGE
endpoints/nginx 10s
$ kubectl get targetgroupbindings # ALB TG 확인
NAME SERVICE-NAME SERVICE-PORT TARGET-TYPE AGE
k8s-default-nginx-7955a49c3c nginx http ip 19s
# 접속 주소 확인 및 접속
$ echo -e "Nginx WebServer URL = https://nginx.$MyDomain"
Nginx WebServer URL = https://nginx.$MyDomain"
Nginx WebServer URL = https://nginx.wellbeconnected.com
$ curl -s https://nginx.$MyDomain
$ kubectl logs deploy/nginx -f
nginx 17:12:41.10
nginx 17:12:41.10 Welcome to the Bitnami nginx container
nginx 17:12:41.10 Subscribe to project updates by watching https://github.com/bitnami/containers
nginx 17:12:41.10 Submit issues and feature requests at https://github.com/bitnami/containers/issues
nginx 17:12:41.10
nginx 17:12:41.11 INFO ==> ** Starting NGINX setup **
nginx 17:12:41.12 INFO ==> Validating settings in NGINX_* env vars
Generating RSA private key, 4096 bit long modulus (2 primes)
........................................++++
...........................................................................................................................++++
e is 65537 (0x010001)
Signature ok
subject=CN = example.com
Getting Private key
nginx 17:12:41.78 INFO ==> No custom scripts in /docker-entrypoint-initdb.d
nginx 17:12:41.78 INFO ==> Initializing NGINX
realpath: /bitnami/nginx/conf/vhosts: No such file or directory
nginx 17:12:41.80 INFO ==> ** NGINX setup finished! **
nginx 17:12:41.81 INFO ==> ** Starting NGINX **
# 반복 접속
$ while true; do curl -s https://nginx.$MyDomain -I | head -n 1; date; sleep 1; done
# (참고) 삭제 시
helm uninstall nginx
컨테이너 로그 환경의 로그는 표준 출력 stdout과 표준 에러 stderr로 보내는 것을 권고 합니다 — 링크
# 로그 모니터링
$ kubectl logs deploy/nginx -f
# nginx 웹 접속 시도
# 컨테이너 로그 파일 위치 확인
$ kubectl exec -it deploy/nginx -- ls -l /opt/bitnami/nginx/logs/
total 0
lrwxrwxrwx 1 root root 11 Feb 18 13:35 access.log -> /dev/stdout
lrwxrwxrwx 1 root root 11 Feb 18 13:35 error.log -> /dev/stderr(참고) nginx docker log collector 예시 — 링크 링크
RUN ln -sf /dev/stdout /opt/bitnami/nginx/logs/access.log
RUN ln -sf /dev/stderr /opt/bitnami/nginx/logs/error.log
# forward request and error logs to docker log collector
RUN ln -sf /dev/stdout /var/log/nginx/access.log \
&& ln -sf /dev/stderr /var/log/nginx/error.log
종료된 파드의 로그는 kubectl logs로 조회 할 수 없습니다.
$ helm uninstall nginx
release "nginx" uninstalled
$ kubectl logs deploy/nginx -f
Error from server (NotFound): deployments.apps "nginx" not foundkubelet 기본 설정은 로그 파일의 최대 크기가 10Mi로 10Mi를 초과하는 로그는 전체 로그 조회가 불가능합니다.
cat /etc/kubernetes/kubelet-config.yaml
...
containerLogMaxSize: 10Mi(참고) EKS 수정 예시 :테스트 필요 — 링크
apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
name: <cluster-name>
region: eu-central-1
nodeGroups:
- name: worker-spot-containerd-large-log
labels: { instance-type: spot }
instanceType: t3.large
minSize: 2
maxSize: 30
desiredCapacity: 2
amiFamily: AmazonLinux2
containerRuntime: containerd
availabilityZones: ["eu-central-1a", "eu-central-1b", "eu-central-1c"]
kubeletExtraConfig:
containerLogMaxSize: "500Mi"
containerLogMaxFiles: 5
파드 로깅
- CloudWatch Container Insights + Fluent Bit로 파드 로그 수집 가능합니다. [참고: 링크]
Container Insights metrics in Amazon CloudWatch & Fluent Bit (Logs)
CCI(CloudWatch Container Insight) : 노드에 CW Agent 파드와 Fluent Bit 파드가 데몬셋으로 배치되어 Metrics와 Logs를 수집합니다.
- Fluent Bit : (as a DaemonSet to send logs to CloudWatch Logs) Integration in CloudWatch Container Insights for EKS — Docs
[수집] Fluent Bit 컨테이너를 데몬셋으로 동작시키고, 아래 3가지 종류의 로그를 CloudWatch Logs 에 전송합니다.
- /aws/containerinsights/Cluster_Name/application : 로그 소스(All log files in /var/log/containers), 각 컨테이너/파드 로그
- /aws/containerinsights/Cluster_Name/host : 로그 소스(Logs from /var/log/dmesg, /var/log/secure, and /var/log/messages), 노드(호스트) 로그
- /aws/containerinsights/Cluster_Name/dataplane : 로그 소스(/var/log/journal for kubelet.service, kubeproxy.service, and docker.service), 쿠버네티스 데이터플레인 로그
[저장] : CloudWatch Logs 에 로그를 저장, 로그 그룹 별 로그 보존 기간 설정 가능합니다.
[시각화] : CloudWatch 의 Logs Insights 를 사용하여 대상 로그를 분석하고, CloudWatch 의 대시보드로 시각화합니다.
CloudWatch Container Insight는 컨테이너형 애플리케이션 및 마이크로 서비스에 대한 모니터링, 트러블 슈팅 및 알람을 위한 완전 관리형 관측 서비스입니다.
(사전 확인) 노드의 로그 확인
- application 로그 소스(All log files in /var/log/containers → 심볼릭 링크 /var/log/pods/<컨테이너>, 각 컨테이너/파드 로그
# 로그 위치 확인
#ssh ec2-user@$N1 sudo tree /var/log/containers
#ssh ec2-user@$N1 sudo ls -al /var/log/containers
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo tree /var/log/containers; echo; done
>>>>> 192.168.1.177 <<<<<
/var/log/containers
├── aws-node-4f8w9_kube-system_aws-node-934c7cf05648511affa8131e706c70d68c6092ace16a0b498fd9a044bb36b1c3.log -> /var/log/pods/kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65/aws-node/0.log
├── aws-node-4f8w9_kube-system_aws-vpc-cni-init-15dd31f982cdd0fbbbd5d6876da2c277808a2fb30079c987cea85af7d652b07a.log -> /var/log/pods/kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65/aws-vpc-cni-init/0.log
├── coredns-6777fcd775-vz7wf_kube-system_coredns-317ede63cd6beaf247366f85c6455537f5755fcab92ff81da5645fc2a74c8df3.log -> /var/log/pods/kube-system_coredns-6777fcd775-vz7wf_ab78db97-770
...
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo ls -al /var/log/containers; echo; done
>>>>> 192.168.1.177 <<<<<
total 8
drwxr-xr-x 2 root root 4096 May 20 15:21 .
drwxr-xr-x 10 root root 4096 May 20 15:11 ..
lrwxrwxrwx 1 root root 92 May 20 15:11 aws-node-4f8w9_kube-system_aws-node-934c7cf05648511affa8131e706c70d68c6092ace16a0b498fd9a044bb36b1c3.log -> /var/log/pods/kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65/aws-node/0.log
...
# 개별 파드 로그 확인 : 아래 각자 디렉터리 경로는 다름
$ ssh ec2-user@$N1 sudo tail -f var/log/pods/kube-system_ebs-csi-controller-5d4666c6f8-2j4sr_5fc95aab-9f85-458d-9e6b-4eb3d4befbd6/liveness-probe/0.log
2. host 로그 소스(Logs from /var/log/dmesg, /var/log/secure, and /var/log/messages), 노드(호스트) 로그
# 로그 위치 확인
#ssh ec2-user@$N1 sudo tree /var/log/ -L 1
#ssh ec2-user@$N1 sudo ls -la /var/log/
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo tree /var/log/ -L 1; echo; done
>>>>> 192.168.1.177 <<<<<
/var/log/
├── amazon
├── audit
├── aws-routed-eni
├── boot.log
├── btmp
├── chrony
├── cloud-init.log
├── cloud-init-output.log
├── containers
├── cron
├── dmesg
├── dmesg.old
├── grubby
├── grubby_prune_debug
├── journal
├── lastlog
├── maillog
├── messages
├── pods
├── sa
├── secure
├── spooler
├── tallylog
├── wtmp
└── yum.log
8 directories, 17 files
...
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo ls -la /var/log/; echo; done
>>>>> 192.168.1.177 <<<<<
total 756
drwxr-xr-x 10 root root 4096 May 20 15:11 .
drwxr-xr-x 18 root root 254 May 13 01:36 ..
drwxr-xr-x 3 root root 17 May 20 15:11 amazon
drwx------ 2 root root 23 May 13 01:36 audit
drwxr-xr-x 2 root root 69 May 20 15:14 aws-routed-eni
-rw------- 1 root root 1158 May 20 17:24 boot.log
-rw------- 1 root utmp 9216 May 20 17:14 btmp
drwxr-x--- 2 chrony chrony 72 May 13 01:36 chrony
-rw-r--r-- 1 root root 104780 May 20 15:11 cloud-init.log
-rw-r----- 1 root root 12915 May 20 15:11 cloud-init-output.log
drwxr-xr-x 2 root root 4096 May 20 15:21 containers
-rw------- 1 root root 3648 May 20 17:30 cron
-rw-r--r-- 1 root root 31696 May 20 15:11 dmesg
-rw-r--r-- 1 root root 30486 May 13 01:37 dmesg.old
-rw------- 1 root root 2375 May 13 01:37 grubby
-rw-r--r-- 1 root root 193 May 5 18:08 grubby_prune_debug
drwxr-sr-x+ 4 root systemd-journal 86 May 20 15:11 journal
-rw-r--r-- 1 root root 292584 May 20 15:11 lastlog
-rw------- 1 root root 806 May 20 15:11 maillog
-rw------- 1 root root 418361 May 20 17:30 messages
drwxr-xr-x 7 root root 4096 May 20 15:21 pods
drwxr-xr-x 2 root root 18 May 20 15:20 sa
-rw------- 1 root root 56306 May 20 17:30 secure
-rw------- 1 root root 0 May 5 18:08 spooler
-rw------- 1 root root 0 May 5 18:08 tallylog
-rw-rw-r-- 1 root utmp 2304 May 20 15:11 wtmp
-rw------- 1 root root 4188 May 20 15:11 yum.log
...
# 호스트 로그 확인
#ssh ec2-user@$N1 sudo tail /var/log/dmesg
#ssh ec2-user@$N1 sudo tail /var/log/secure
#ssh ec2-user@$N1 sudo tail /var/log/messages
$ for log in dmesg secure messages; do echo ">>>>> Node1: /var/log/$log <<<<<"; ssh ec2-user@$N1 sudo tail /var/log/$log; echo; done
$ for log in dmesg secure messages; do echo ">>>>> Node2: /var/log/$log <<<<<"; ssh ec2-user@$N2 sudo tail /var/log/$log; echo; done
$ for log in dmesg secure messages; do echo ">>>>> Node3: /var/log/$log <<<<<"; ssh ec2-user@$N3 sudo tail /var/log/$log; echo; done
3. dataplane 로그 소스(/var/log/journal for kubelet.service, kubeproxy.service, and docker.service), 쿠버네티스 데이터플레인 로그
# 로그 위치 확인
#ssh ec2-user@$N1 sudo tree /var/log/journal -L 1
#ssh ec2-user@$N1 sudo ls -la /var/log/journal
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo tree /var/log/journal -L 1; echo; done
>>>>> 192.168.1.177 <<<<<
/var/log/journal
├── ec228e787715421fe93f95adb870076e
└── ec2d184089fd93a22cc04a98df97cc6d
2 directories, 0 files
>>>>> 192.168.2.23 <<<<<
/var/log/journal
├── ec22e5f5dab5aa19a843805f9279ae25
└── ec2d184089fd93a22cc04a98df97cc6d
2 directories, 0 files
>>>>> 192.168.3.177 <<<<<
/var/log/journal
├── ec2cd3270dd42439ea7b5d8e75c1fa04
└── ec2d184089fd93a22cc04a98df97cc6d
2 directories, 0 files
# 저널 로그 확인 - 링크
$ ssh ec2-user@$N3 sudo journalctl -x -n 200
$ ssh ec2-user@$N3 sudo journalctl -f
CloudWatch Container Insight 설치 : cloudwatch-agent & fluent-bit — 링크 & Setting up Fluent Bit — Docs
# 설치
$ FluentBitHttpServer='On'
$ FluentBitHttpPort='2020'
$ FluentBitReadFromHead='Off'
$ FluentBitReadFromTail='On'
$ curl -s https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/latest/k8s-deployment-manifest-templates/deployment-mode/daemonset/container-insights-monitoring/quickstart/cwagent-fluent-bit-quickstart.yaml | sed 's/{{cluster_name}}/'${CLUSTER_NAME}'/;s/{{region_name}}/'${AWS_DEFAULT_REGION}'/;s/{{http_server_toggle}}/"'${FluentBitHttpServer}'"/;s/{{http_server_port}}/"'${FluentBitHttpPort}'"/;s/{{read_from_head}}/"'${FluentBitReadFromHead}'"/;s/{{read_from_tail}}/"'${FluentBitReadFromTail}'"/' | kubectl apply -f -
namespace/amazon-cloudwatch created
serviceaccount/cloudwatch-agent created
clusterrole.rbac.authorization.k8s.io/cloudwatch-agent-role created
clusterrolebinding.rbac.authorization.k8s.io/cloudwatch-agent-role-binding created
configmap/cwagentconfig created
daemonset.apps/cloudwatch-agent created
configmap/fluent-bit-cluster-info created
serviceaccount/fluent-bit created
clusterrole.rbac.authorization.k8s.io/fluent-bit-role created
clusterrolebinding.rbac.authorization.k8s.io/fluent-bit-role-binding created
configmap/fluent-bit-config created
daemonset.apps/fluent-bit created
# 설치 확인
$ kubectl get-all -n amazon-cloudwatch
$ kubectl get ds,pod,cm,sa -n amazon-cloudwatch
$ kubectl describe clusterrole cloudwatch-agent-role fluent-bit-role # 클러스터롤 확인
$ kubectl describe clusterrolebindings cloudwatch-agent-role-binding fluent-bit-role-binding # 클러스터롤 바인딩 확인
$ kubectl -n amazon-cloudwatch logs -l name=cloudwatch-agent -f # 파드 로그 확인
$ kubectl -n amazon-cloudwatch logs -l k8s-app=fluent-bit -f # 파드 로그 확인
$ for node in $N1 $N2 $N3; do echo ">>>>> $node <<<<<"; ssh ec2-user@$node sudo ss -tnlp | grep fluent-bit; echo; done
>>>>> 192.168.1.177 <<<<<
LISTEN 0 128 0.0.0.0:2020 0.0.0.0:* users:(("fluent-bit",pid=6449,fd=188))
>>>>> 192.168.2.23 <<<<<
LISTEN 0 128 0.0.0.0:2020 0.0.0.0:* users:(("fluent-bit",pid=6218,fd=194))
>>>>> 192.168.3.177 <<<<<
LISTEN 0 128 0.0.0.0:2020 0.0.0.0:* users:(("fluent-bit",pid=6201,fd=193))
# cloudwatch-agent 설정 확인
$ kubectl describe cm cwagentconfig -n amazon-cloudwatch
Name: cwagentconfig
Namespace: amazon-cloudwatch
Labels: <none>
Annotations: <none>
Data
====
cwagentconfig.json:
----
{
"agent": {
"region": "ap-northeast-2"
},
"logs": {
"metrics_collected": {
"kubernetes": {
"cluster_name": "eks-hayley",
"metrics_collection_interval": 60
}
},
"force_flush_interval": 5
}
}
BinaryData
====
Events: <none>
# CW 파드가 수집하는 방법 : Volumes에 HostPath를 살펴보자!
# / 호스트 패스 공유??? 보안상 안전한가? 좀 더 범위를 좁힐수는 없을까??
kubectl describe -n amazon-cloudwatch ds cloudwatch-agent
...
$ ssh ec2-user@$N1 sudo tree /dev/disk
/dev/disk
├── by-id
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208 -> ../../nvme0n1
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208-ns-1 -> ../../nvme0n1
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208-ns-1-part1 -> ../../nvme0n1p1
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208-ns-1-part128 -> ../../nvme0n1p128
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208-part1 -> ../../nvme0n1p1
│ ├── nvme-Amazon_Elastic_Block_Store_vol010a945caeee4c208-part128 -> ../../nvme0n1p128
│ ├── nvme-nvme.1d0f-766f6c3031306139343563616565653463323038-416d617a6f6e20456c617374696320426c6f636b2053746f7265-00000001 -> ../../nvme0n1
│ ├── nvme-nvme.1d0f-766f6c3031306139343563616565653463323038-416d617a6f6e20456c617374696320426c6f636b2053746f7265-00000001-part1 -> ../../nvme0n1p1
│ └── nvme-nvme.1d0f-766f6c3031306139343563616565653463323038-416d617a6f6e20456c617374696320426c6f636b2053746f7265-00000001-part128 -> ../../nvme0n1p128
├── by-label
│ └── \\x2f -> ../../nvme0n1p1
├── by-partlabel
│ ├── BIOS\\x20Boot\\x20Partition -> ../../nvme0n1p128
│ └── Linux -> ../../nvme0n1p1
├── by-partuuid
│ ├── 429d7ba4-0655-4ca8-921f-029767b39f97 -> ../../nvme0n1p128
│ └── dac0c6b1-d3db-4105-8fc1-71977e51c13e -> ../../nvme0n1p1
├── by-path
│ ├── pci-0000:00:04.0-nvme-1 -> ../../nvme0n1
│ ├── pci-0000:00:04.0-nvme-1-part1 -> ../../nvme0n1p1
│ └── pci-0000:00:04.0-nvme-1-part128 -> ../../nvme0n1p128
└── by-uuid
└── d7f5c8a4-1699-470a-88f2-cb87476f6177 -> ../../nvme0n1p1
6 directories, 18 files
# Fluent Bit Cluster Info 확인
$ kubectl get cm -n amazon-cloudwatch fluent-bit-cluster-info -o yaml | yh
apiVersion: v1
data:
cluster.name: eks-hayley
http.port: "2020"
http.server: "On"
logs.region: ap-northeast-2
read.head: "Off"
read.tail: "On"
kind: ConfigMap
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"v1","data":{"cluster.name":"eks-hayley","http.port":"2020","http.server":"On","logs.region":"ap-northeast-2","read.head":"Off","read.tail":"On"},"kind":"ConfigMap","metadata":{"annotations":{},"name":"fluent-bit-cluster-info","namespace":"amazon-cloudwatch"}}
creationTimestamp: "2023-05-20T17:32:22Z"
name: fluent-bit-cluster-info
namespace: amazon-cloudwatch
resourceVersion: "36851"
uid: 28bf645d-9e04-4cd6-b779-5aa6261138ac
...
# Fluent Bit 로그 INPUT/FILTER/OUTPUT 설정 확인 - 링크
## 설정 부분 구성 : application-log.conf , dataplane-log.conf , fluent-bit.conf , host-log.conf , parsers.conf
$ kubectl describe cm fluent-bit-config -n amazon-cloudwatch
...
application-log.conf:
----
[INPUT]
Name tail
Tag application.*
Exclude_Path /var/log/containers/cloudwatch-agent*, /var/log/containers/fluent-bit*, /var/log/containers/aws-node*, /var/log/containers/kube-proxy*
Path /var/log/containers/*.log
multiline.parser docker, cri
DB /var/fluent-bit/state/flb_container.db
Mem_Buf_Limit 50MB
Skip_Long_Lines On
Refresh_Interval 10
Rotate_Wait 30
storage.type filesystem
Read_from_Head ${READ_FROM_HEAD}
[FILTER]
Name kubernetes
Match application.*
Kube_URL https://kubernetes.default.svc:443
Kube_Tag_Prefix application.var.log.containers.
Merge_Log On
Merge_Log_Key log_processed
K8S-Logging.Parser On
K8S-Logging.Exclude Off
Labels Off
Annotations Off
Use_Kubelet On
Kubelet_Port 10250
Buffer_Size 0
[OUTPUT]
Name cloudwatch_logs
Match application.*
region ${AWS_REGION}
log_group_name /aws/containerinsights/${CLUSTER_NAME}/application
log_stream_prefix ${HOST_NAME}-
auto_create_group true
extra_user_agent container-insights
...
# Fluent Bit 파드가 수집하는 방법 : Volumes에 HostPath를 살펴보자!
$ kubectl describe -n amazon-cloudwatch ds fluent-bit
fluentbitstate:
Type: HostPath (bare host directory volume)
Path: /var/fluent-bit/state
HostPathType:
varlog:
Type: HostPath (bare host directory volume)
Path: /var/log
HostPathType:
varlibdockercontainers:
Type: HostPath (bare host directory volume)
Path: /var/lib/docker/containers
HostPathType:
fluent-bit-config:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: fluent-bit-config
Optional: false
runlogjournal:
Type: HostPath (bare host directory volume)
Path: /run/log/journal
HostPathType:
dmesg:
Type: HostPath (bare host directory volume)
Path: /var/log/dmesg
HostPathType:
...
$ ssh ec2-user@$N1 sudo tree /var/log
/var/log
├── amazon
│ └── ssm
│ ├── amazon-ssm-agent.log
│ └── audits
│ └── amazon-ssm-agent-audit-2023-05-20
├── audit
│ └── audit.log
├── aws-routed-eni
│ ├── egress-v4-plugin.log
│ ├── ipamd.log
│ └── plugin.log
├── boot.log
├── btmp
├── chrony
│ ├── measurements.log
│ ├── statistics.log
│ └── tracking.log
├── cloud-init.log
├── cloud-init-output.log
├── containers
│ ├── aws-node-4f8w9_kube-system_aws-node-934c7cf05648511affa8131e706c70d68c6092ace16a0b498fd9a044bb36b1c3.log -> /var/log/pods/kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65/aws-node/0.log
│ ├── aws-node-4f8w9_kube-system_aws-vpc-cni-init-15dd31f982cdd0fbbbd5d6876da2c277808a2fb30079c987cea85af7d652b07a.log -> /var/log/pods/kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65/aws-vpc-cni-init/0.log
│ ├── cloudwatch-agent-s2nb7_amazon-cloudwatch_cloudwatch-agent-061a493deafdcad54e80bef07245e888060126d686a7923e391b291b985c9664.log -> /var/log/pods/amazon-cloudwatch_cloudwatch-agent-s2nb7_ddf5b767-c3e1-4653-bd6d-f963543867db/cloudwatch-agent/0.log
│ ├── coredns-6777fcd775-vz7wf_kube-system_coredns-317ede63cd6beaf247366f85c6455537f5755fcab92ff81da5645fc2a74c8df3.log -> /var/log/pods/kube-system_coredns-6777fcd775-vz7wf_ab78db97-770c-4fc8-8fab-45a0738ca43f/coredns/0.log
│ ├── ebs-csi-node-2l2gr_kube-system_ebs-plugin-59091b835ae32499ae969850e7f033fc37c0c9373a748ffd1dd85275fea8adab.log -> /var/log/pods/kube-system_ebs-csi-node-2l2gr_a4ae3c7d-7d22-4dae-a649-05388a27c495/ebs-plugin/0.log
│ ├── ebs-csi-node-2l2gr_kube-system_liveness-probe-6ef127de871cb1491d2f93a5583638e54bc28f16d2d20948a3ec3e14340e991d.log -> /var/log/pods/kube-system_ebs-csi-node-2l2gr_a4ae3c7d-7d22-4dae-a649-05388a27c495/liveness-probe/0.log
│ ├── ebs-csi-node-2l2gr_kube-system_node-driver-registrar-cea0af65fdabbe8732066385feba935e46405dc10470abc855f540ffcef6b688.log -> /var/log/pods/kube-system_ebs-csi-node-2l2gr_a4ae3c7d-7d22-4dae-a649-05388a27c495/node-driver-registrar/0.log
│ ├── fluent-bit-dnlmt_amazon-cloudwatch_fluent-bit-8bfb76f7bd1205f978124c64cc43f79012994d0eefd3d60563a175fe6d8c1b42.log -> /var/log/pods/amazon-cloudwatch_fluent-bit-dnlmt_8c13b18d-0290-484b-8026-b7b8d5785a36/fluent-bit/0.log
│ ├── kube-ops-view-558d87b798-dkgxb_kube-system_kube-ops-view-fac78967c247f247ccdbcb0b1fe2e9c1168fe8ec38839382d43c7ad4da2a78a3.log -> /var/log/pods/kube-system_kube-ops-view-558d87b798-dkgxb_f62f2da2-7d94-42ea-8bb9-5d5f4dae69c4/kube-ops-view/0.log
│ └── kube-proxy-z7bk7_kube-system_kube-proxy-728d554902a8ff9d13fccbaff9eb291ec451907fde5a16ba446d26a0b60c8990.log -> /var/log/pods/kube-system_kube-proxy-z7bk7_579a63ce-1b00-4c62-8d9c-f73996ad713a/kube-proxy/0.log
├── cron
├── dmesg
├── dmesg.old
├── grubby
├── grubby_prune_debug
├── journal
│ ├── ec228e787715421fe93f95adb870076e
│ │ ├── system.journal
│ │ └── user-1000.journal
│ └── ec2d184089fd93a22cc04a98df97cc6d
│ └── system.journal
├── lastlog
├── maillog
├── messages
├── pods
│ ├── amazon-cloudwatch_cloudwatch-agent-s2nb7_ddf5b767-c3e1-4653-bd6d-f963543867db
│ │ └── cloudwatch-agent
│ │ └── 0.log
│ ├── amazon-cloudwatch_fluent-bit-dnlmt_8c13b18d-0290-484b-8026-b7b8d5785a36
│ │ └── fluent-bit
│ │ └── 0.log
│ ├── kube-system_aws-node-4f8w9_49fd3225-12b6-4986-ad41-dafb03dfcc65
│ │ ├── aws-node
│ │ │ └── 0.log
│ │ └── aws-vpc-cni-init
│ │ └── 0.log
│ ├── kube-system_coredns-6777fcd775-vz7wf_ab78db97-770c-4fc8-8fab-45a0738ca43f
│ │ └── coredns
│ │ └── 0.log
│ ├── kube-system_ebs-csi-node-2l2gr_a4ae3c7d-7d22-4dae-a649-05388a27c495
│ │ ├── ebs-plugin
│ │ │ └── 0.log
│ │ ├── liveness-probe
│ │ │ └── 0.log
│ │ └── node-driver-registrar
│ │ └── 0.log
│ ├── kube-system_kube-ops-view-558d87b798-dkgxb_f62f2da2-7d94-42ea-8bb9-5d5f4dae69c4
│ │ └── kube-ops-view
│ │ └── 0.log
│ └── kube-system_kube-proxy-z7bk7_579a63ce-1b00-4c62-8d9c-f73996ad713a
│ └── kube-proxy
│ └── 0.log
├── sa
│ └── sa20
├── secure
├── spooler
├── tallylog
├── wtmp
└── yum.log
29 directories, 50 files
# (참고) 삭제
curl -s https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/latest/k8s-deployment-manifest-templates/deployment-mode/daemonset/container-insights-monitoring/quickstart/cwagent-fluent-bit-quickstart.yaml | sed 's/{{cluster_name}}/'${CLUSTER_NAME}'/;s/{{region_name}}/'${AWS_DEFAULT_REGION}'/;s/{{http_server_toggle}}/"'${FluentBitHttpServer}'"/;s/{{http_server_port}}/"'${FluentBitHttpPort}'"/;s/{{read_from_head}}/"'${FluentBitReadFromHead}'"/;s/{{read_from_tail}}/"'${FluentBitReadFromTail}'"/' | kubectl delete -f -- 로깅 확인 : CloudWatch -> Log Groups
- 메트릭 확인 : CloudWatch → Insights → Container Insights : 우측 상단(Local Time Zone, 30분) ⇒ 리소스 : myeks 선택
Metrics-server & kwatch & botkube
Metrics-server 확인 : kubelet으로부터 수집한 리소스 메트릭을 수집 및 집계하는 클러스터 애드온 구성 요소 — EKS Github Docs CMD
# 배포
$ kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
# 메트릭 서버 확인 : 메트릭은 15초 간격으로 cAdvisor를 통하여 가져옴
$ kubectl get pod -n kube-system -l k8s-app=metrics-server
$ kubectl api-resources | grep metrics
$ kubectl get apiservices |egrep '(AVAILABLE|metrics)'
# 노드 메트릭 확인
$ kubectl top node
NAME CPU(cores) CPU% MEMORY(bytes) MEMORY%
ip-192-168-1-177.ap-northeast-2.compute.internal 55m 1% 523Mi 3%
ip-192-168-2-23.ap-northeast-2.compute.internal 47m 1% 601Mi 4%
ip-192-168-3-177.ap-northeast-2.compute.internal 55m 1% 588Mi 3%
# 파드 메트릭 확인
$ kubectl top pod -A
$ kubectl top pod -n kube-system --sort-by='cpu'
NAME CPU(cores) MEMORY(bytes)
kube-ops-view-558d87b798-dkgxb 9m 34Mi
metrics-server-6bf466fbf5-m5kn4 9m 17Mi
aws-node-x2fpq 5m 38Mi
aws-node-4f8w9 5m 37Mi
...
$ kubectl top pod -n kube-system --sort-by='memory'
NAME CPU(cores) MEMORY(bytes)
ebs-csi-controller-5d4666c6f8-2j4sr 2m 54Mi
ebs-csi-controller-5d4666c6f8-d8vnb 4m 51Mi
aws-node-grjn6 4m 38Mi
aws-node-x2fpq 3m 38Mi
aws-node-4f8w9 4m 37Mi
...
kwatch
# configmap 생성
cat <<EOT > ~/kwatch-config.yaml
apiVersion: v1
kind: Namespace
metadata:
name: kwatch
---
apiVersion: v1
kind: ConfigMap
metadata:
name: kwatch
namespace: kwatch
data:
config.yaml: |
alert:
slack:
webhook: '**https://hooks.slack.com/services/XXXXXXXX'
title: $NICK-EKS
#text:
pvcMonitor:
enabled: true
interval: 5
threshold: 70
EOT
$ kubectl apply -f kwatch-config.yaml
# 배포
$ kubectl apply -f https://raw.githubusercontent.com/abahmed/kwatch/v0.8.3/deploy/**deploy.yaml**# 터미널1
$ watch kubectl get pod
# 잘못된 이미지 정보의 파드 배포
$ kubectl apply -f https://raw.githubusercontent.com/junghoon2/kube-books/main/ch05/nginx-error-pod.yml
$ kubectl get events -w
AST SEEN TYPE REASON OBJECT MESSAGE
40m Normal SuccessfullyReconciled targetgroupbinding/k8s-default-nginx-7955a49c3c Successfully reconciled
40m Warning BackendNotFound targetgroupbinding/k8s-default-nginx-7955a49c3c backend not found: Service "nginx" not found
1s Normal Scheduled pod/nginx-19 Successfully assigned default/nginx-19 to ip-192-168-2-23.ap-northeast-2.compute.internal
0s Normal Pulling pod/nginx-19 Pulling image "nginx:1.19.19"
42m Normal Scheduled pod/nginx-685c67bc9-snzh4 Successfully assigned default/nginx-685c67bc9-snzh4 to ip-192-168-3-177.ap-northeast-2.compute.internal
42m Normal Pulling pod/nginx-685c67bc9-snzh4 Pulling image "docker.io/bitnami/nginx:1.24.0-debian-11-r0"
41m Normal Pulled pod/nginx-685c67bc9-snzh4 Successfully pulled image "docker.io/bitnami/nginx:1.24.0-debian-11-r0" in 5.074856938s
41m Normal Created pod/nginx-685c67bc9-snzh4 Created container nginx
41m Normal Started pod/nginx-685c67bc9-snzh4 Started container nginx
40m Normal Killing pod/nginx-685c67bc9-snzh4 Stopping container nginx
42m Normal Succes
프로메테우스-스택
- 프로메테우스 오퍼레이터 : 프로메테우스 및 프로메테우스 오퍼레이터를 이용하여 메트릭 수집과 알람 기능을 실습합니다.
- Thanos 타노드 : 프로메테우스 확장성과 고가용성을 제공합니다.
제공 기능
- time series collection happens via a pull model over HTTP
- targets are discovered via service discovery or static configuration
프로메테우스-스택 설치 : 모니터링에 필요한 여러 요소를 단일 차트(스택)으로 제공 ← 시각화(그라파나), 이벤트 메시지 정책(경고 임계값, 경고 수준) 등 — Helm
# 모니터링
$ kubectl create ns monitoring
$ watch kubectl get pod,pvc,svc,ingress -n monitoring
# 사용 리전의 인증서 ARN 확인
$ CERT_ARN=`aws acm list-certificates --query 'CertificateSummaryList[].CertificateArn[]' --output text`
echo $CERT_ARN
# repo 추가
$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
# 파라미터 파일 생성
$ cat <<EOT > monitor-values.yaml
prometheus:
prometheusSpec:
podMonitorSelectorNilUsesHelmValues: false
serviceMonitorSelectorNilUsesHelmValues: false
retention: 5d
retentionSize: "10GiB"
ingress:
enabled: true
ingressClassName: alb
hosts:
- prometheus.$MyDomain
paths:
- /*
annotations:
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/ssl-redirect: '443'
grafana:
defaultDashboardsTimezone: Asia/Seoul
adminPassword: prom-operator
ingress:
enabled: true
ingressClassName: alb
hosts:
- grafana.$MyDomain
paths:
- /*
annotations:
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/ssl-redirect: '443'
defaultRules:
create: false
kubeControllerManager:
enabled: false
kubeEtcd:
enabled: false
kubeScheduler:
enabled: false
alertmanager:
enabled: false
# alertmanager:
# ingress:
# enabled: true
# ingressClassName: alb
# hosts:
# - alertmanager.$MyDomain
# paths:
# - /*
# annotations:
# alb.ingress.kubernetes.io/scheme: internet-facing
# alb.ingress.kubernetes.io/target-type: ip
# alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
# alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
# alb.ingress.kubernetes.io/success-codes: 200-399
# alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
# alb.ingress.kubernetes.io/group.name: study
# alb.ingress.kubernetes.io/ssl-redirect: '443'
EOT
$ cat monitor-values.yaml | yh
# 배포
$ helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 45.27.2 \
--set prometheus.prometheusSpec.scrapeInterval='15s' --set prometheus.prometheusSpec.evaluationInterval='15s' \
-f monitor-values.yaml --namespace monitoring
# 확인
## alertmanager-0 : 사전에 정의한 정책 기반(예: 노드 다운, 파드 Pending 등)으로 시스템 경고 메시지를 생성 후 경보 채널(슬랙 등)로 전송
## grafana : 프로메테우스는 메트릭 정보를 저장하는 용도로 사용하며, 그라파나로 시각화 처리
## prometheus-0 : 모니터링 대상이 되는 파드는 ‘exporter’라는 별도의 사이드카 형식의 파드에서 모니터링 메트릭을 노출, pull 방식으로 가져와 내부의 시계열 데이터베이스에 저장
## node-exporter : 노드익스포터는 물리 노드에 대한 자원 사용량(네트워크, 스토리지 등 전체) 정보를 메트릭 형태로 변경하여 노출
## operator : 시스템 경고 메시지 정책(prometheus rule), 애플리케이션 모니터링 대상 추가 등의 작업을 편리하게 할수 있게 CRD 지원
## kube-state-metrics : 쿠버네티스의 클러스터의 상태(kube-state)를 메트릭으로 변환하는 파드
$ helm list -n monitoring
$ kubectl get pod,svc,ingress -n monitoring
NAME READY STATUS RESTARTS AGE
pod/kube-prometheus-stack-grafana-778f55f4cd-zstjw 3/3 Running 0 2m1s
pod/kube-prometheus-stack-kube-state-metrics-5d6578867c-xtmpw 1/1 Running 0 2m1s
pod/kube-prometheus-stack-operator-74d474b47b-kfvg5 1/1 Running 0 2m1s
pod/kube-prometheus-stack-prometheus-node-exporter-4gqks 1/1 Running 0 2m1s
pod/kube-prometheus-stack-prometheus-node-exporter-kc9th 1/1 Running 0 2m1s
pod/kube-prometheus-stack-prometheus-node-exporter-tgknn 1/1 Running 0 2m1s
pod/prometheus-kube-prometheus-stack-prometheus-0 2/2 Running 0 116s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kube-prometheus-stack-grafana ClusterIP 10.100.143.76 <none> 80/TCP 2m1s
service/kube-prometheus-stack-kube-state-metrics ClusterIP 10.100.198.41 <none> 8080/TCP 2m1s
service/kube-prometheus-stack-operator ClusterIP 10.100.34.146 <none> 443/TCP 2m1s
service/kube-prometheus-stack-prometheus ClusterIP 10.100.166.247 <none> 9090/TCP 2m1s
service/kube-prometheus-stack-prometheus-node-exporter ClusterIP 10.100.188.88 <none> 9100/TCP 2m1s
service/prometheus-operated ClusterIP None <none> 9090/TCP 116s
NAME CLASS HOSTS ADDRESS PORTS AGE
ingress.networking.k8s.io/kube-prometheus-stack-grafana alb grafana.wellbeconnected.com myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com 80 2m1s
ingress.networking.k8s.io/kube-prometheus-stack-prometheus alb prometheus.wellbeconnected.com myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com 80 2m1s
$ kubectl get-all -n monitoring
$ kubectl get prometheus,servicemonitors -n monitoring
NAME VERSION DESIRED READY RECONCILED AVAILABLE AGE
prometheus.monitoring.coreos.com/kube-prometheus-stack-prometheus v2.42.0 1 1 True True 68s
NAME AGE
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-apiserver 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-coredns 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-grafana 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-kube-proxy 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-kube-state-metrics 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-kubelet 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-operator 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-prometheus 68s
servicemonitor.monitoring.coreos.com/kube-prometheus-stack-prometheus-node-exporter 68s
$ kubectl get crd | grep monitoring
# helm 삭제
helm uninstall -n monitoring kube-prometheus-stack
# crd 삭제
kubectl delete crd alertmanagerconfigs.monitoring.coreos.com
kubectl delete crd alertmanagers.monitoring.coreos.com
kubectl delete crd podmonitors.monitoring.coreos.com
kubectl delete crd probes.monitoring.coreos.com
kubectl delete crd prometheuses.monitoring.coreos.com
kubectl delete crd prometheusrules.monitoring.coreos.com
kubectl delete crd servicemonitors.monitoring.coreos.com
kubectl delete crd thanosrulers.monitoring.coreos.com- AWS ELB(ALB) 갯수 확인 → Rule 확인
- (참고) kube-controller-manager, kube-scheduler 수집 불가
- 프로메테우스 웹 → Status → Targets 확인 : kube-controller-manager, kube-scheduler 없음 확인
프로메테우스 기본 사용 : 모니터링 그래프
- 모니터링 대상이 되는 서비스는 일반적으로 자체 웹 서버의 /metrics 엔드포인트 경로에 다양한 메트릭 정보를 노출
- 이후 프로메테우스는 해당 경로에 http get 방식으로 메트릭 정보를 가져와 TSDB 형식으로 저장
# 아래 처럼 프로메테우스가 각 서비스의 9100 접속하여 메트릭 정보를 수집
$ kubectl get node -owide
$ kubectl get svc,ep -n monitoring kube-prometheus-stack-prometheus-node-exporter
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kube-prometheus-stack-prometheus-node-exporter ClusterIP 10.100.188.88 <none> 9100/TCP 23m
NAME ENDPOINTS AGE
endpoints/kube-prometheus-stack-prometheus-node-exporter 192.168.1.177:9100,192.168.2.23:9100,192.168.3.177:9100 23m
# 노드의 9100번의 /metrics 접속 시 다양한 메트릭 정보를 확인할수 있음 : 마스터 이외에 워커노드도 확인 가능
$ ssh ec2-user@$N1 curl -s localhost:9100/metrics
$ kubectl get ingress -n monitoring kube-prometheus-stack-prometheus
NAME CLASS HOSTS ADDRESS PORTS AGE
kube-prometheus-stack-prometheus alb prometheus.wellbeconnected.com myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com 80 23m
$ kubectl describe ingress -n monitoring kube-prometheus-stack-prometheus
Name: kube-prometheus-stack-prometheus
Labels: app=kube-prometheus-stack-prometheus
app.kubernetes.io/instance=kube-prometheus-stack
app.kubernetes.io/managed-by=Helm
app.kubernetes.io/part-of=kube-prometheus-stack
app.kubernetes.io/version=45.27.2
chart=kube-prometheus-stack-45.27.2
heritage=Helm
release=kube-prometheus-stack
Namespace: monitoring
Address: myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com
Ingress Class: alb
Default backend: <default>
Rules:
Host Path Backends
---- ---- --------
prometheus.wellbeconnected.com
/* kube-prometheus-stack-prometheus:9090 (192.168.2.191:9090)
Annotations: alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:ap-northeast-2:903575331688:certificate/3f025fab-6859-4cad-9d60-0c5887053d70
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/listen-ports: [{"HTTPS":443}, {"HTTP":80}]
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/ssl-redirect: 443
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/target-type: ip
meta.helm.sh/release-name: kube-prometheus-stack
meta.helm.sh/release-namespace: monitoring
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal SuccessfullyReconciled 23m (x2 over 23m) ingress Successfully reconciled
# 프로메테우스 ingress 도메인으로 웹 접속
$ echo -e "Prometheus Web URL = https://prometheus.$MyDomain"
Prometheus Web URL = https://prometheus.wellbeconnected.com
# 웹 상단 주요 메뉴 설명
1. 경고(Alert) : 사전에 정의한 시스템 경고 정책(Prometheus Rules)에 대한 상황
2. 그래프(Graph) : 프로메테우스 자체 검색 언어 PromQL을 이용하여 메트릭 정보를 조회 -> 단순한 그래프 형태 조회
3. 상태(Status) : 경고 메시지 정책(Rules), 모니터링 대상(Targets) 등 다양한 프로메테우스 설정 내역을 확인 > 버전(2.42.0)
4. 도움말(Help)
그라파나 Grafana
TSDB 데이터를 시각화, 다양한 데이터 형식 지원합니다.(메트릭, 로그, 트레이스 등)
그라파나는 시각화 솔루션으로 데이터 자체를 저장하지 않음 → 현재 실습 환경에서는 데이터 소스는 프로메테우스를 사용합니다.
접속 정보 확인 및 로그인 : 기본 계정 — admin / prom-operator
# 그라파나 버전 확인
$ kubectl exec -it -n monitoring deploy/kube-prometheus-stack-grafana -- grafana-cli --version
grafana cli version 9.5.1
# ingress 확인
$ kubectl get ingress -n monitoring kube-prometheus-stack-grafana
NAME CLASS HOSTS ADDRESS PORTS AGE
kube-prometheus-stack-grafana alb grafana.wellbeconnected.com myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com 80 26m
$ kubectl describe ingress -n monitoring kube-prometheus-stack-grafana
Name: kube-prometheus-stack-grafana
Labels: app.kubernetes.io/instance=kube-prometheus-stack
app.kubernetes.io/managed-by=Helm
app.kubernetes.io/name=grafana
app.kubernetes.io/version=9.5.1
helm.sh/chart=grafana-6.56.2
Namespace: monitoring
Address: myeks-ingress-alb-1399011434.ap-northeast-2.elb.amazonaws.com
Ingress Class: alb
Default backend: <default>
Rules:
Host Path Backends
---- ---- --------
grafana.wellbeconnected.com
/ kube-prometheus-stack-grafana:80 (192.168.3.76:3000)
Annotations: alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:ap-northeast-2:903575331688:certificate/3f025fab-6859-4cad-9d60-0c5887053d70
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/listen-ports: [{"HTTPS":443}, {"HTTP":80}]
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/ssl-redirect: 443
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/target-type: ip
meta.helm.sh/release-name: kube-prometheus-stack
meta.helm.sh/release-namespace: monitoring
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal SuccessfullyReconciled 26m ingress Successfully reconciled
# ingress 도메인으로 웹 접속 : 기본 계정 - admin / prom-operator
$ echo -e "Grafana Web URL = https://grafana.$MyDomain"
Grafana Web URL = https://grafana.wellbeconnected.com
그라파나 메뉴
Connections → Your connections : 스택의 경우 자동으로 프로메테우스를 데이터 소스로 추가해둠 ← 서비스 주소 확인
# 서비스 주소 확인
$ kubectl get svc,ep -n monitoring kube-prometheus-stack-prometheus
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kube-prometheus-stack-prometheus ClusterIP 10.100.166.247 <none> 9090/TCP 30m
NAME ENDPOINTS AGE
endpoints/kube-prometheus-stack-prometheus 192.168.2.191:9090 30m- 해당 데이터 소스 접속 확인
# 테스트용 파드 배포
$ cat <<EOF | kubectl create -f -
apiVersion: v1
kind: Pod
metadata:
name: netshoot-pod
spec:
containers:
- name: netshoot-pod
image: nicolaka/netshoot
command: ["tail"]
args: ["-f", "/dev/null"]
terminationGracePeriodSeconds: 0
EOF
$ kubectl get pod netshoot-pod
NAME READY STATUS RESTARTS AGE
netshoot-pod 0/1 ContainerCreating 0 5s
# 접속 확인
$ kubectl exec -it netshoot-pod -- nslookup kube-prometheus-stack-prometheus.monitoring
Server: 10.100.0.10
Address: 10.100.0.10#53
Name: kube-prometheus-stack-prometheus.monitoring.svc.cluster.local
Address: 10.100.166.247
$ kubectl exec -it netshoot-pod -- curl -s kube-prometheus-stack-prometheus.monitoring:9090/graph -v ; echo
* Trying 10.100.166.247:9090...
* Connected to kube-prometheus-stack-prometheus.monitoring (10.100.166.247) port 9090 (#0)
> GET /graph HTTP/1.1
> Host: kube-prometheus-stack-prometheus.monitoring:9090
> User-Agent: curl/8.0.1
> Accept: */*
>
< HTTP/1.1 200 OK
< Date: Sat, 01 Mar 2025 23:36:43 GMT
< Content-Length: 734
< Content-Type: text/html; charset=utf-8
<
* Connection #0 to host kube-prometheus-stack-prometheus.monitoring left intact
<!doctype html><html lang="en"><head><meta charset="utf-8"/><link rel="shortcut icon" href="./favicon.ico"/><meta name="viewport" content="width=device-width,initial-scale=1,shrink-to-fit=no"/><meta name="theme-color" content="#000000"/><script>const GLOBAL_CONSOLES_LINK="",GLOBAL_AGENT_MODE="false",GLOBAL_READY="true"</script><link rel="manifest" href="./manifest.json" crossorigin="use-credentials"/><title>Prometheus Time Series Collection and Processing Server</title><script defer="defer" src="./static/js/main.c1286cb7.js"></script><link href="./static/css/main.cb2558a0.css" rel="stylesheet"></head><body class="bootstrap"><noscript>You need to enable JavaScript to run this app.</noscript><div id="root"></div></body></html>
# 삭제
$ kubectl delete pod netshoot-pod
기본 대시보드
- 스택을 통해서 설치된 기본 대시보드 확인 : Dashboards → Browse
공식 대시보드 가져오기
- Dashboard → New → Import : 원하는 대시보드 입력(예: 15757, 13770, 1860, 15172, 13332, 16032 등)
(실습 완료 후) 자원 삭제
삭제 : [운영서버 EC2]에서 원클릭 삭제 진행
# eksctl delete cluster --name $CLUSTER_NAME && aws cloudformation delete-stack --stack-name $CLUSTER_NAME
nohup sh -c "eksctl delete cluster --name $CLUSTER_NAME && aws cloudformation delete-stack --stack-name $CLUSTER_NAME" > /root/delete.log 2>&1 &
# (옵션) 삭제 과정 확인
tail -f delete.log
(옵션) 로깅 삭제 : 위에서 삭제 안 했을 경우 삭제
# EKS Control Plane 로깅(CloudWatch Logs) 비활성화
eksctl utils update-cluster-logging --cluster $CLUSTER_NAME --region $AWS_DEFAULT_REGION --disable-types all --approve
# 로그 그룹 삭제 : 컨트롤 플레인
aws logs delete-log-group --log-group-name /aws/eks/$CLUSTER_NAME/cluster
---
# 로그 그룹 삭제 : 데이터 플레인
aws logs delete-log-group --log-group-name /aws/containerinsights/$CLUSTER_NAME/application
aws logs delete-log-group --log-group-name /aws/containerinsights/$CLUSTER_NAME/dataplane
aws logs delete-log-group --log-group-name /aws/containerinsights/$CLUSTER_NAME/host
aws logs delete-log-group --log-group-name /aws/containerinsights/$CLUSTER_NAME/performance'IT > Infra&Cloud' 카테고리의 다른 글
| [aws] EKS Storage, Managed Node Groups (2) | 2025.02.23 |
|---|---|
| [aws] EKS Networking (0) | 2025.02.16 |
| [aws] Amzaon EKS 설치 및 기본 사용 (0) | 2025.02.09 |
| [gcp] Gemini (0) | 2024.08.04 |
| [gcp] Security Command Center(Detective Controls) (0) | 2024.07.15 |
최근에 올라온 글
최근에 달린 댓글
- Total
- Today
- Yesterday
TAG
- 파이썬
- k8s calico
- 도서
- PYTHON
- VPN
- 국제 개발 협력
- EKS
- gcp serverless
- k8s cni
- OS
- handson
- GKE
- 혼공챌린지
- k8s
- 혼공단
- SDWAN
- NW
- cni
- AWS
- NFT
- security
- S3
- AI
- IaC
- controltower
- 혼공파
- operator
- cloud
- terraform
- GCP
| 일 | 월 | 화 | 수 | 목 | 금 | 토 |
|---|---|---|---|---|---|---|
| 1 | ||||||
| 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 9 | 10 | 11 | 12 | 13 | 14 | 15 |
| 16 | 17 | 18 | 19 | 20 | 21 | 22 |
| 23 | 24 | 25 | 26 | 27 | 28 | 29 |
| 30 | 31 |
글 보관함
